Hertel

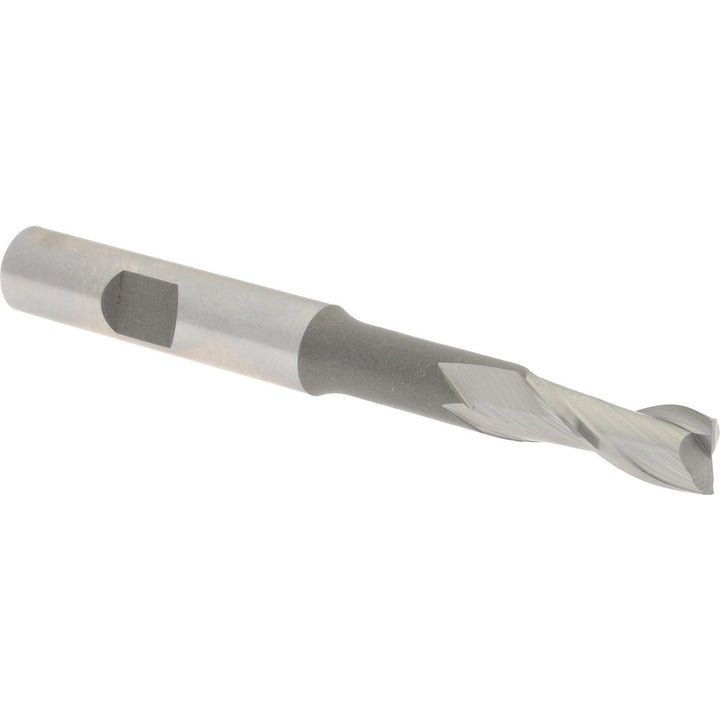

5/16" 2-Flute High Speed Steel Square End Mill - Hertel E1033020
MFR# E1033020Series HSQH2-CCER
$34.69List $44.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes2
MaterialHigh Speed Steel
CoatingBright/Uncoated
Description
The Hertel E1033020 is a 5/16 2-flute High Speed Steel (M7) square end mill. 3/4 length of cut, 3-5/16 overall length. Series HSQH2-CCER.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeLong
Material gradeM7
Mill diameter in5/16
Number of flutes2
Overall length in3-5/16
Reach length in1-3/4
Shank diameter in3/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
