Hertel

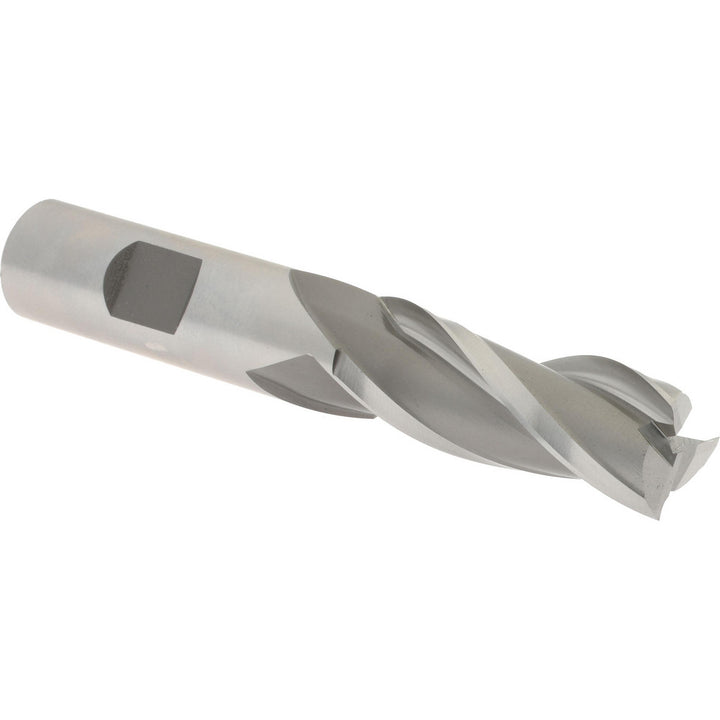

5/8" 3-Flute High Speed Steel Square End Mill - Hertel E1043040
MFR# E1043040
$51.32List $65.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialHigh Speed Steel
Description
The Hertel E1043040 is a 5/8 3-flute High Speed Steel (M7) square end mill. 1-5/8 length of cut, 3-3/4 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeM7
Mill diameter in5/8
Number of flutes3
Overall length in3-3/4
Shank diameter in5/8
Variable helixNo
Variable indexNo
