Hertel

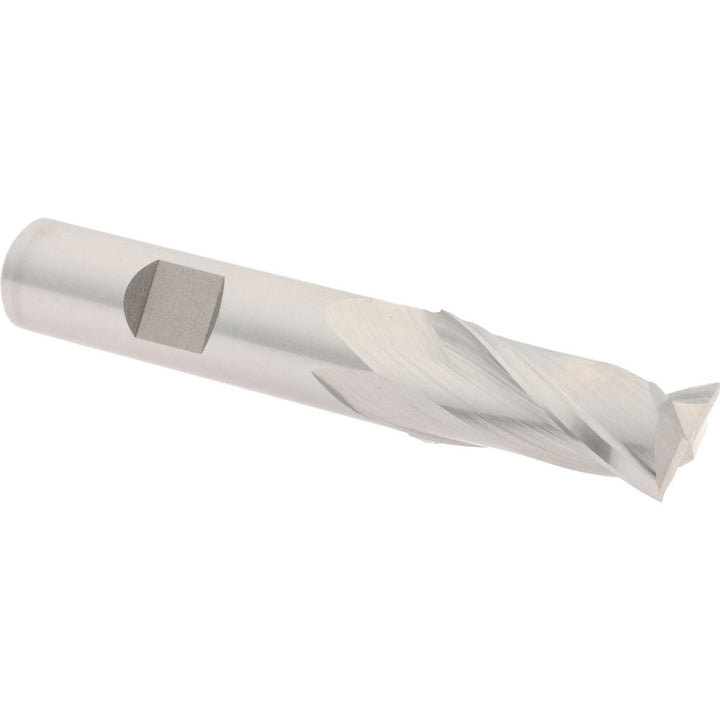

9/16" 2-Flute Cobalt Square End Mill - Hertel E2030036

MFR# E2030036Series HSQCO2-CC

$49.88List $63.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/16

Flutes2

MaterialCobalt

CoatingBright/Uncoated

Description

The Hertel E2030036 is a 9/16 2-flute Cobalt (M42) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-1/8 length of cut, 3-1/8 overall length. Series HSQCO2-CC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeM42

Mill diameter in9/16

Number of flutes2

Overall length in3-1/8

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter in1/2

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
