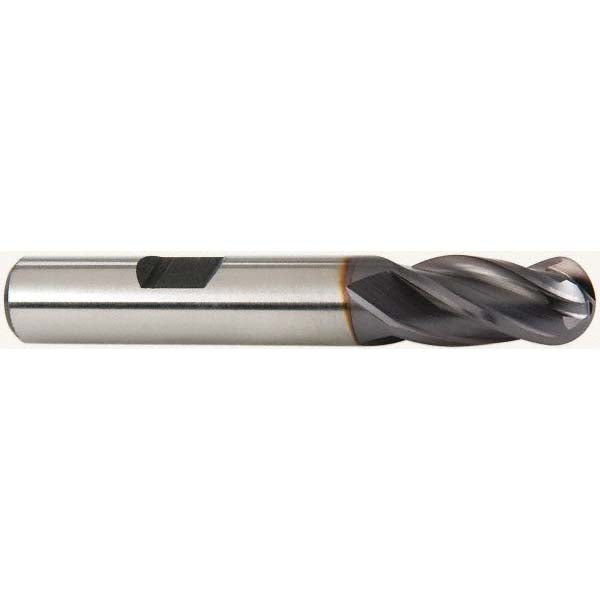

3/8" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020024

Hertel

3/8" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020024

MFR# E7020024

$25.47List $32.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialCobalt
CoatingTiCN

Description

The Hertel E7020024 is a 3/8 4-flute Cobalt (M42) ball end mill with a TiCN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeM42
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
