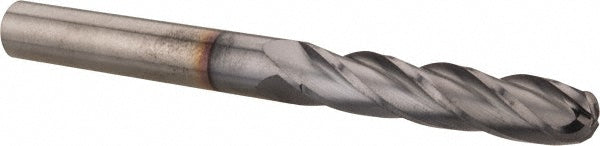

3/8" 4-Flute Solid Carbide Ball End Mill, TiCN - Hertel EG062024

Hertel

3/8" 4-Flute Solid Carbide Ball End Mill, TiCN - Hertel EG062024

MFR# EG062024

$63.43List $81.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel EG062024 is a 3/8 4-flute Solid Carbide ball end mill with a TiCN finish for longer tool life. 1-3/4 length of cut, 4 overall length.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut in1-3/4
Mill diameter in3/8
Number of flutes4
Overall length in4
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
