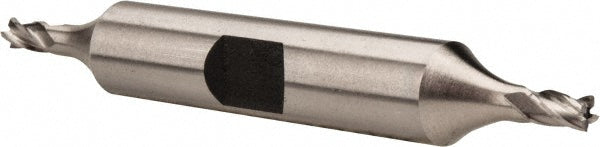

1/8" 4-Flute High Speed Steel Square End Mill - Hertel GG99914179

Hertel

1/8" 4-Flute High Speed Steel Square End Mill - Hertel GG99914179

MFR# GG99914179

$15.98List $20.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialHigh Speed Steel

Description

The Hertel GG99914179 is a 1/8 4-flute High Speed Steel (M7) square end mill. 3/16 length of cut, 2-3/4 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Material gradeM7
Mill diameter in1/8
Number of flutes4
Overall length in2-3/4
Shank diameter in3/8
Variable helixNo
Variable indexNo
