1/4" 2-Flute High Speed Steel Square End Mill, TiN - Hertel GH99914220

Hertel

1/4" 2-Flute High Speed Steel Square End Mill, TiN - Hertel GH99914220

MFR# GH99914220

$25.11List $32.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialHigh Speed Steel
CoatingTiN

Description

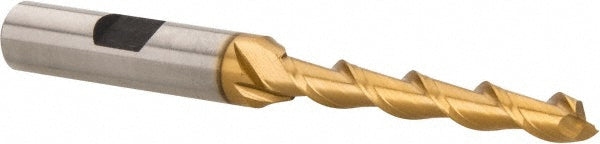

The Hertel GH99914220 is a 1/4 2-flute High Speed Steel (M7) square end mill with a Titanium Nitride finish for longer tool life. 1-3/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle42
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Length typeLong
Material gradeM7
Mill diameter in1/4
Number of flutes2
Overall length in3-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
