HORN

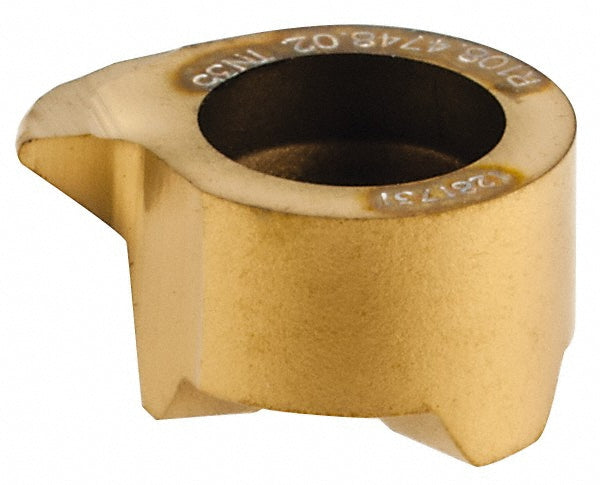

Solid Carbide Insert, Grade TN35, TiN - HORN R108474802 TN35
MFR# R108474802 TN35Series R108
$25.33List $27.20
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 2 — minimum order 2
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN35
MaterialSolid Carbide
CoatingTiN
Description
The HORN R108474802 TN35 is a solid carbide indexable insert, grade TN35, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Corner radius0.0080
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code108
Insert styleR108
Length0.3010
Manufacturer gradeTN35
Material gradeC5; C6
Maximum depth of cut0.0470
Primary workpiece materialUniversal
RakePositive
Rake angle3
Relief angle47
StandardsDIN 509
Thickness in1/8
Width0.2360
