HORN

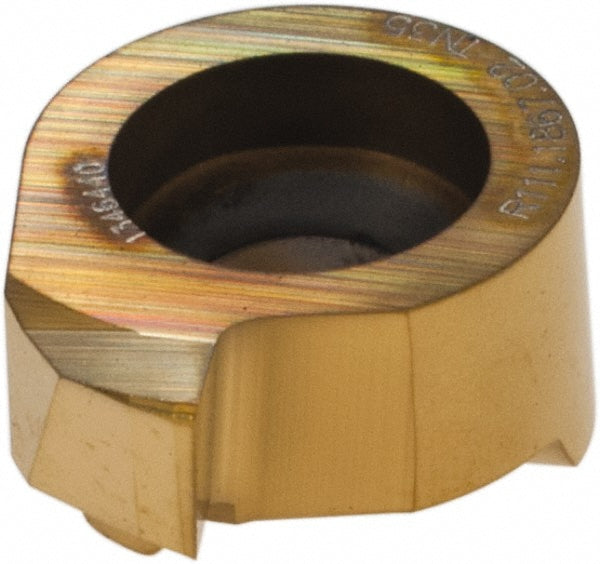

Solid Carbide Insert, Grade TN35, TiN - HORN R111186702 TN35
MFR# R111186702 TN35Series R111
$24.49List $26.30
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 2 — minimum order 2
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN35
MaterialSolid Carbide
CoatingTiN
Description
The HORN R111186702 TN35 is a solid carbide indexable insert, grade TN35, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Corner radius (mm)0.20
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code1867.02
Insert styleR111
Length (mm)10.70
Manufacturer gradeTN35
Material gradeC5; C6
Maximum depth of cut0.0910
Primary workpiece materialUniversal
RakePositive
Rake angle8
Relief angle18
StandardsDIN 509
Thickness (mm)3.95
