HORN

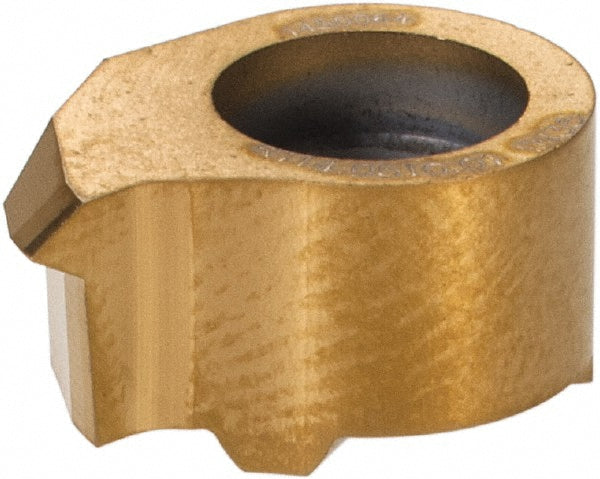

Carbide Insert, Grade TN35 - HORN R114051001TN35
MFR# R114051001TN35
$25.61List $27.50
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN35
MaterialCarbide
Description
The HORN R114051001TN35 is a carbide indexable insert, grade TN35.
Specifications
Finish coatingTitanium Nitride
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size0510
Insert style114
Internal pitch1.0-1.25 mm; 32-18 TPI
Manufacturer gradeTN35
Material gradeC5; C6
Thickness0.213
Thread standardUNF
Thread typeInternal
