HORN

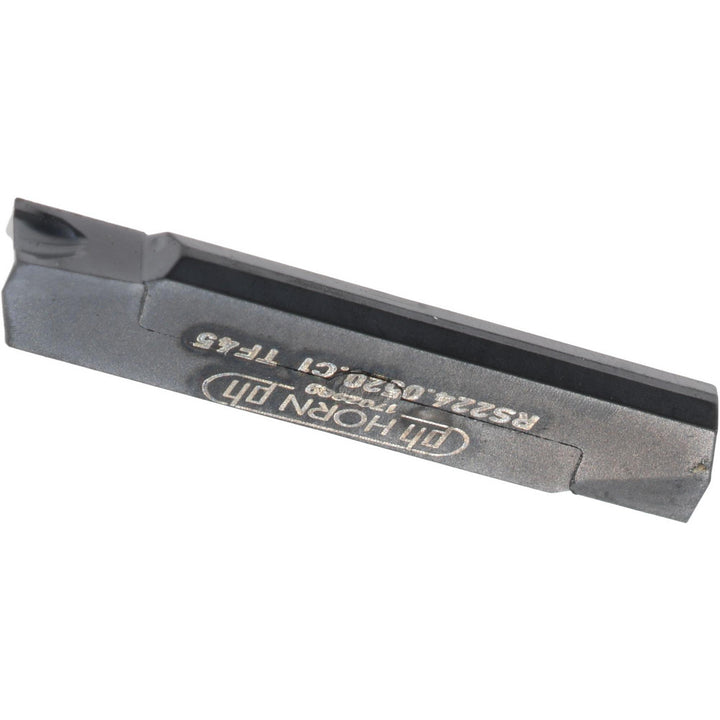

Solid Carbide Insert, Grade TF45, TiAlN - HORN RS2240520C1TF45
MFR# RS2240520C1TF45Series S224
$26.55List $28.50
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 2 — minimum order 2
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTF45
MaterialSolid Carbide
CoatingTiAlN
Description
The HORN RS2240520C1TF45 is a solid carbide indexable insert, grade TF45, TiAlN coated. Suited for universal.
Specifications
Chip breakerC
Coating finishTiAlN
Corner radius0.0060
Cutting height0.1770
Cutting width0.0790
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size1
Insert size0520
Insert size code0520C1
Insert styleS224
Lead angle5
Manufacturer gradeTF45
Maximum depth of cut (mm)8.00
Multi use toolNo
Overall length0.8660
Primary workpiece materialUniversal
RakePositive
Rake angle5.00
