HORN

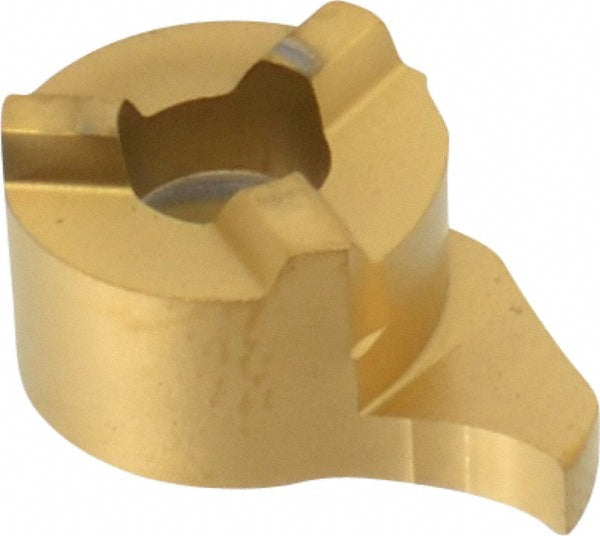

Solid Carbide Insert, Grade TN35, TiN - HORN RU114007808TN35
MFR# RU114007808TN35Series U114
$20.93List $22.00
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN35
MaterialSolid Carbide
CoatingTiN
Description
The HORN RU114007808TN35 is a solid carbide indexable insert, grade TN35, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Corner radius0.0080
Cutting width0.0780
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size0078
Insert size code007808
Insert styleU114
Manufacturer gradeTN35
Material gradeC5; C6
Maximum depth of cut0.1570
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.5310
Primary workpiece materialUniversal
RakePositive
