HORN

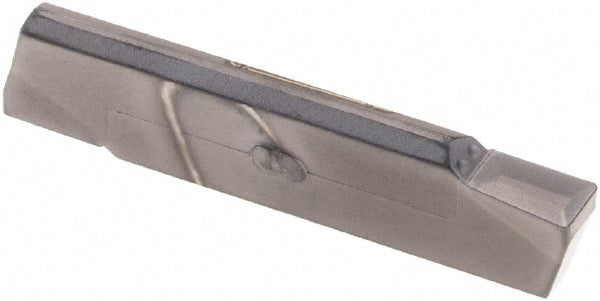

Solid Carbide Insert, Grade TF46 - HORN S2240200D2TF46
MFR# S2240200D2TF46Series S224
$22.92List $24.60
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTF46
MaterialSolid Carbide
Description
The HORN S2240200D2TF46 is a solid carbide indexable insert, grade TF46.
Specifications
Chip breakerD
Corner radius0.0080
Cutting width0.0980
Insert handLeft Hand; Right Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code0200
Insert styleS224
Lead angle5
Manufacturer gradeTF46
Multi use toolNo
Overall length0.8660
