DGM314R001 IN4015 Solid Carbide Insert, Grade IN4015, TiAlN - Ingersoll Cutting Tools 2900687

Ingersoll Cutting Tools

DGM314R001 IN4015 Solid Carbide Insert, Grade IN4015, TiAlN - Ingersoll Cutting Tools 2900687

MFR# 2900687ISO/ANSI# DGM314R001 IN4015Series DGM

$29.57List $37.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN4015
MaterialSolid Carbide
CoatingTiAlN

Description

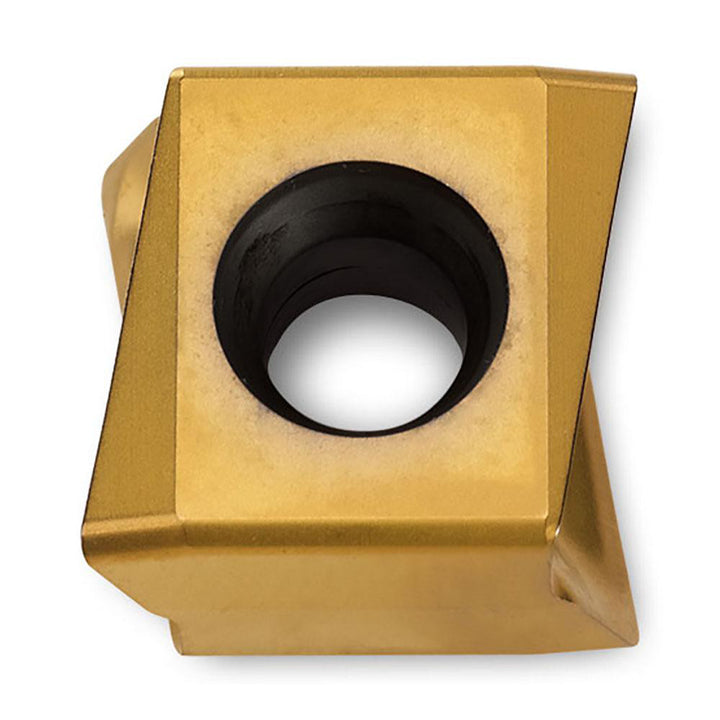

The Ingersoll Cutting Tools 2900687 is a DGM314R001 IN4015 solid carbide indexable insert, grade IN4015, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeDGM314R001 A IN4015
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1BW7; 1BW7X; 1SJ1F; 2SJ3F; SJ6F
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2800
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size31
Insert size code314
Insert styleDGM
Iso codeDGM314R001 IN4015
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog number2900687
Manufacturer gradeIN4015
Material applicationCast Iron; Hard Material
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2800
Thickness range0.2500 to 0.3500
Width0.3950
