SPKN2007DPTR-HD A IN4040 Solid Carbide Insert, Grade IN4040, TiAlN - Ingersoll Cutting Tools 2905850

Ingersoll Cutting Tools

SPKN2007DPTR-HD A IN4040 Solid Carbide Insert, Grade IN4040, TiAlN - Ingersoll Cutting Tools 2905850

MFR# 2905850ISO/ANSI# SPKN2007DPTR-HD A IN4040Series SPKN

$30.20List $38.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN4040
MaterialSolid Carbide
CoatingTiAlN

Description

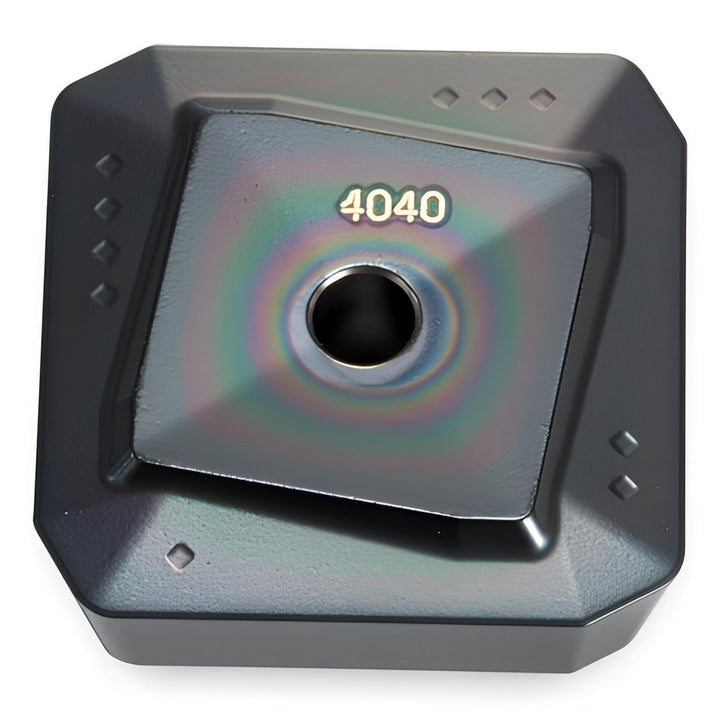

The Ingersoll Cutting Tools 2905850 is a SPKN2007DPTR-HD A IN4040 solid carbide indexable insert, grade IN4040, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPKN2007DPTR-HD A IN4040
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibility5C2M
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.7874
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodWedge
Insert materialSolid Carbide
Insert shapeSquare
Insert size20
Insert size code2007
Insert styleSPKN
Iso codeSPKN2007DPTR-HD A IN4040
Length0.7874
Length range0.7000 to 0.9000
Manufacturers catalog number2905850
Manufacturer gradeIN4040
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Maximum depth of cut (mm)15.90
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.7874
