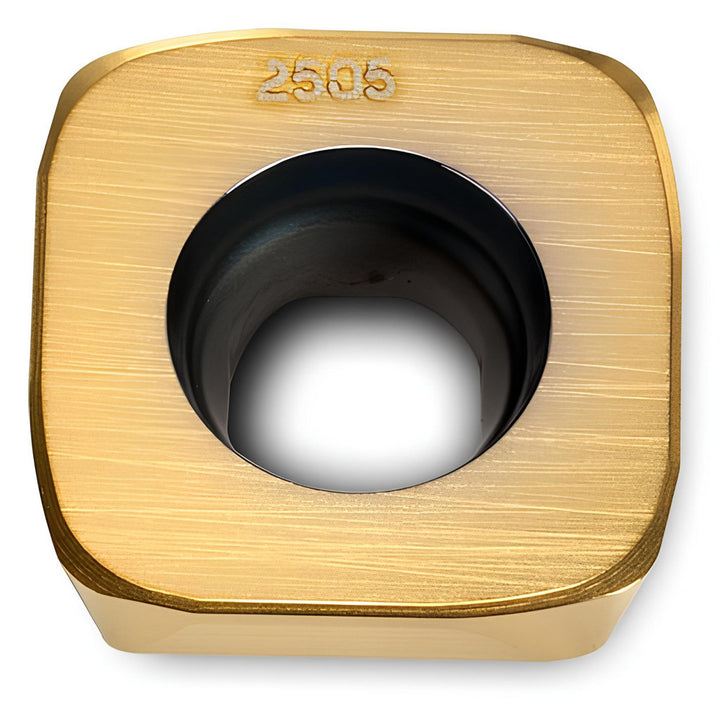

SDXS1305MPR-MR1 J IN4030 Solid Carbide Insert, Grade IN4030, TiAlN - Ingersoll Cutting Tools 2913901

MFR# 2913901ISO/ANSI# SDXS1305MPR-MR1 J IN4030Series SDXS

$22.61List $28.45 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN4030
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 2913901 is a SDXS1305MPR-MR1 J IN4030 solid carbide indexable insert, grade IN4030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeSDXS1305MPR-MR1 J IN4030
Chip breakerMR1
Coating finishTiAlN
Coating processPVD
Cutter series compatibility15M1P; 5M5P
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSDXS
Iso codeSDXS1305MPR-MR1 J IN4030
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number2913901
Manufacturer gradeIN4030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut (mm)11.40
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
