Ingersoll Cutting Tools

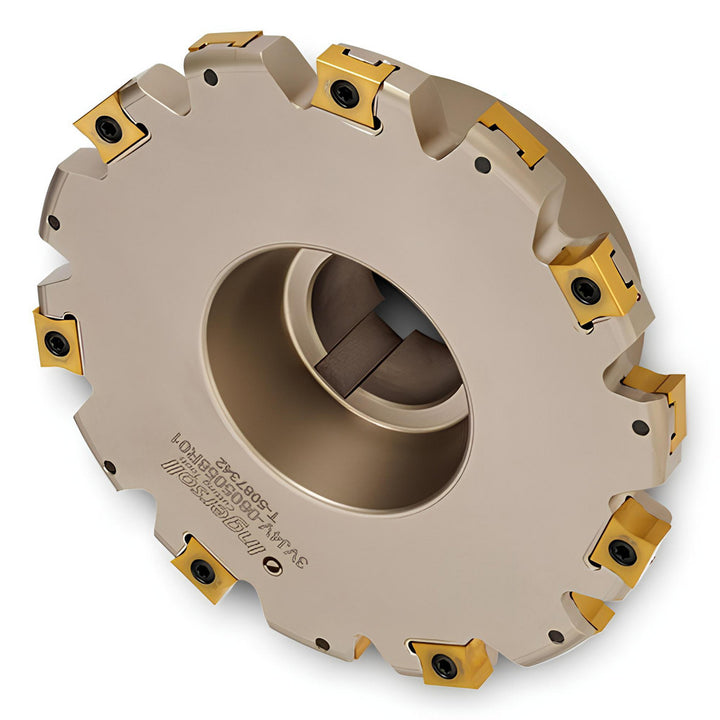

Indexable Milling Cutters - Ingersoll Cutting Tools 2913928
MFR# 2913928Cat# 3VJ4V-03025D1R01Series 3VJ4V
$1,654.91
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.3
Description
The Ingersoll Cutting Tools 2913928 indexable milling cutters. Suited for universal. Series 3VJ4V.
Specifications
CoatedCoated
Compatible insert size code412
Compatible insert styleIHX
Complete insert compatibilityINX412..
Connection typeArbor
Coolant throughNo
Cutter body width0.2500
Cutter diameter in3
Cutting directionRight Hand
Cutting width in1/4
Hole diameter in3/4
Hub diameter in1-1/2
Insert holding methodScrew
Keyway width0.3100
Manufacturers catalog number3VJ4V-03025D1R01
Maximum body diameter3.0000
Maximum cutting width0.2500
Maximum depth of cut0.6700
Number of cutter inserts8
Number of teeth4
Overall height1.5000
Primary workpiece materialUniversal
RakeNegative
Shank diameter1.5000
Shank length1.2500
Toolholder style3VJ4V
Tool applicationSlotting
Tool materialSteel
Tool performanceGeneral Purpose
Tooth typeStaggered
Weldon flatNo
