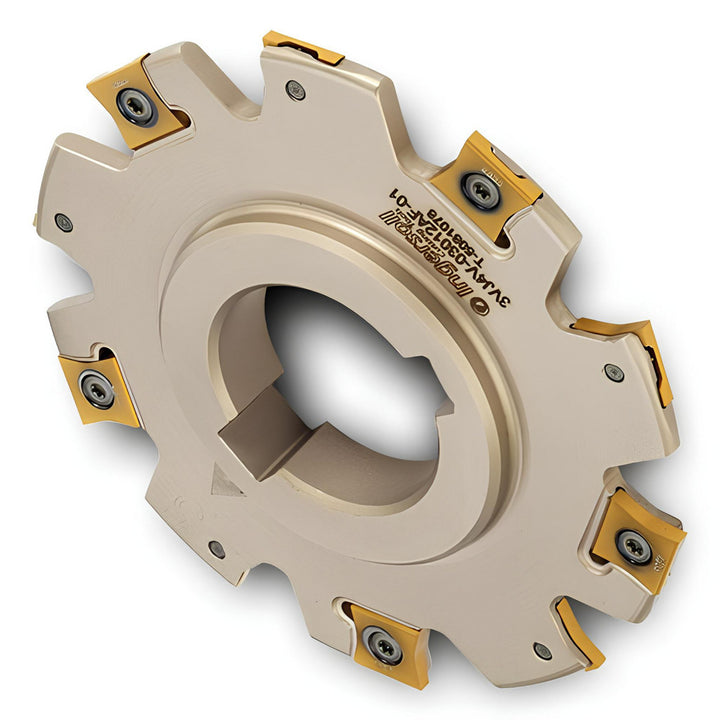

Indexable Milling Cutters - Ingersoll Cutting Tools 2913943
MFR# 2913943Cat# 3VJ4V-06018AG-01Series 3VJ4V
$2,240.18
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.6
Description
The Ingersoll Cutting Tools 2913943 indexable milling cutters. Suited for universal. Series 3VJ4V.
Specifications
Compatible insert size code312
Compatible insert styleIHX
Complete insert compatibilityINX312..
Connection typeArbor
Coolant throughNo
Cutter body width0.1870
Cutter diameter in6
Cutting directionNeutral
Cutting width in3/16
Hole diameter in1-1/4
Hub diameter (mm)47.50
Insert holding methodScrew
Keyway width0.3100
Manufacturers catalog number3VJ4V-06018AG-01
Maximum body diameter6.0000
Maximum cutting width0.1870
Maximum depth of cut2.0100
Number of cutter inserts18
Number of teeth18
Primary workpiece materialUniversal
RakeNegative
Toolholder style3VJ4V
Tool applicationSlotting
Tool materialSteel
Tool performanceGeneral Purpose
Tooth typeStaggered
Weldon flatNo
