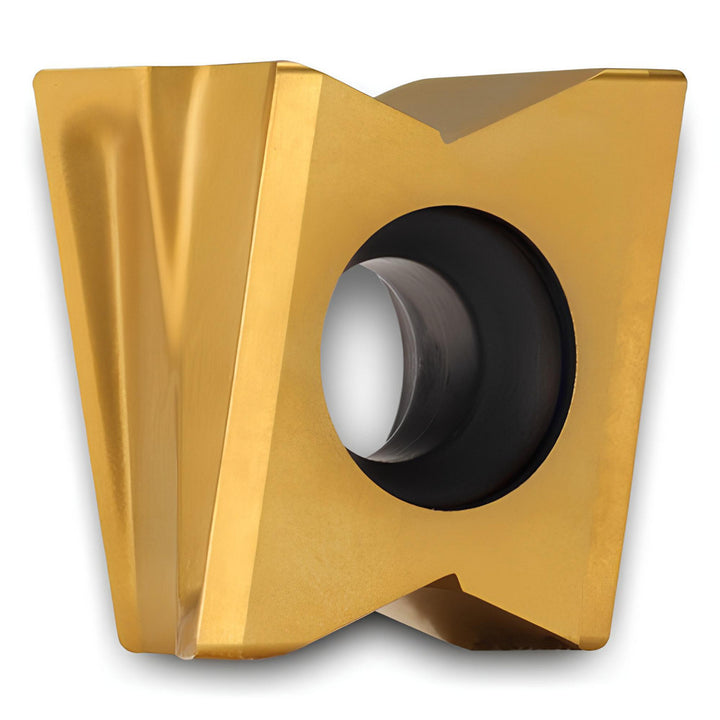

IPM324R001-MM A IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2922930

Ingersoll Cutting Tools

IPM324R001-MM A IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2922930

MFR# 2922930ISO/ANSI# IPM324R001-MM A IN2530Series IPM

$28.97List $36.45 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC9/32
ShapeIrregular
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 2922930 is a IPM324R001-MM A IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeIPM324R001-MM A IN2530
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibility2XJ3J
Cutting edge styleHoned
Included angle degree90
Inscribed circle in9/32
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size32
Insert size code324
Insert styleIPM
Iso codeIPM324R001-MM A IN2530
Length0.5120
Length of cut (mm)13.0000
Length range0.5000 to 0.6000
Manufacturers catalog number2922930
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut (mm)13.00
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in9/32
Thickness range0.2500 to 0.3500
Width0.5120
