Ingersoll Cutting Tools

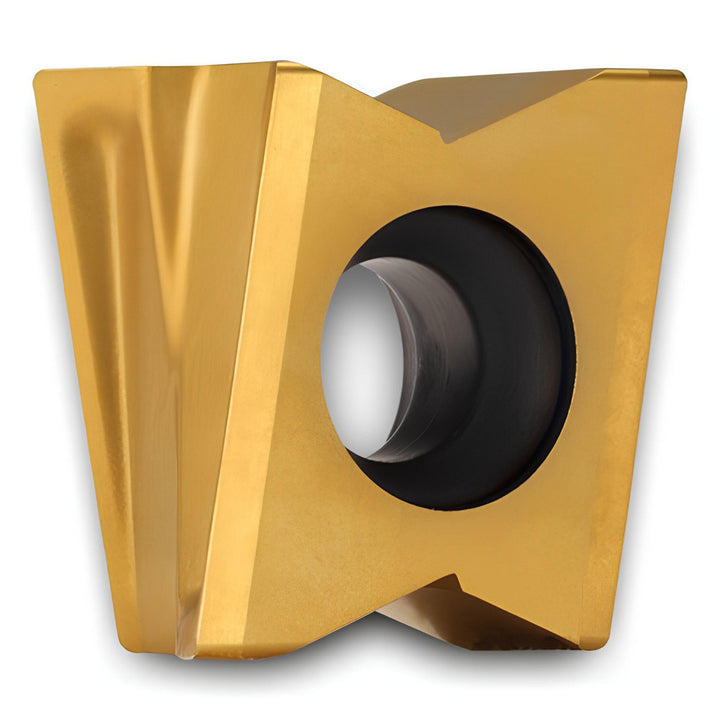

IPM324R001-ML K IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2922958
MFR# 2922958ISO/ANSI# IPM324R001-ML K IN2530Series IPM
$24.87List $31.85
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 2922958 is a IPM324R001-ML K IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeIPM324R001-ML K IN2530
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibility2XJ3J
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5140
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size32
Insert size code324
Insert styleIPM
Iso codeIPM324R001-ML K IN2530
Length0.5120
Length of cut (mm)12.2400
Length range0.5000 to 0.6000
Manufacturers catalog number2922958
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.4820
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in9/32
Thickness range0.2500 to 0.3500
Width0.5140
