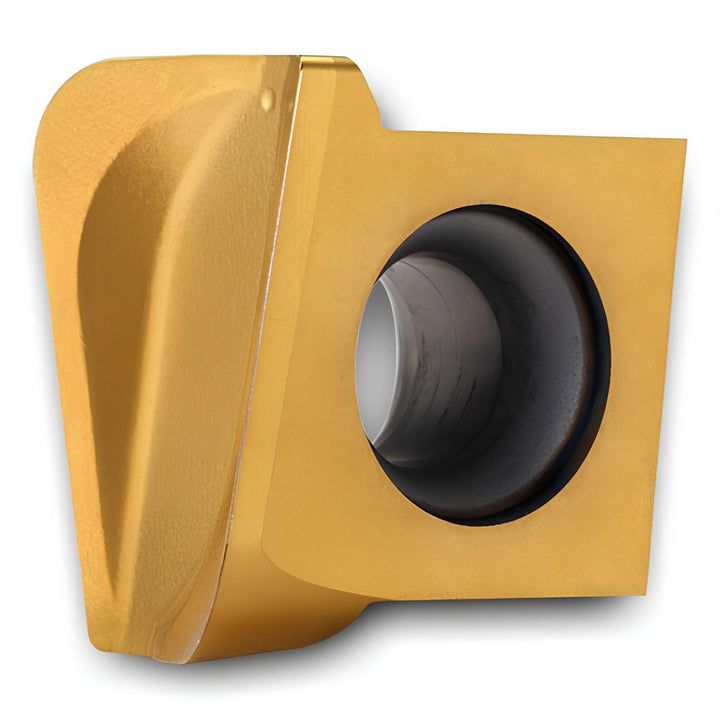

IPM426R009-MM A IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2923909

Ingersoll Cutting Tools

IPM426R009-MM A IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2923909

MFR# 2923909ISO/ANSI# IPM426R009-MM A IN2530Series IPM

$25.86List $32.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 2923909 is a IPM426R009-MM A IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeIPM426R009-MM A IN2530
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutter series compatibility2XJ3J
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5670
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size42
Insert size code426
Insert styleIPM
Iso codeIPM426R009-MM A IN2530
Length0.6300
Length of cut (mm)16.0000
Length range0.6000 to 0.6500
Manufacturers catalog number2923909
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut (mm)16.00
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/8
Thickness range0.3500 to 0.5000
Width0.5670
