Ingersoll Cutting Tools

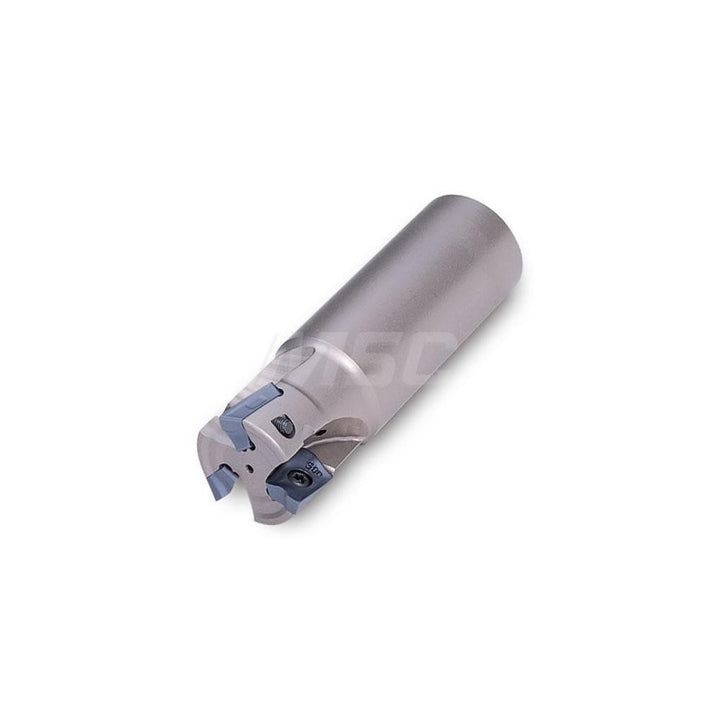

Indexable End Mills - Ingersoll Cutting Tools 3012023
MFR# 3012023Series 12J1E
$381.43
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Ingersoll Cutting Tools 3012023 indexable end mills. Suited for universal. Series 12J1E.
Specifications
Complete insert compatibilityAO.T1805..
Coolant throughYes
Cutter style12J1E
Cutting diameter1
Flute typeStraight
Hand of holderRight Hand
Head length1.5
Insert compatibilityAOMT 1805..
Insert holding methodScrew
Lead angle90
Maximum depth of cut0.6600
Maximum ramping angle6degree
Modular connection sizeNone
Multi use toolYes
Number of cutter inserts2
Number of flutes2
Overall length in4
Primary workpiece materialUniversal
RakePositive
Shank diameter in1
Shank length2.2500
Shank typeWeldon Flat
Tool applicationFacing; Shouldering; Slotting; Ramping
Tool materialSteel
Tool performanceGeneral Purpose
Usable length1.5000
