Ingersoll Cutting Tools

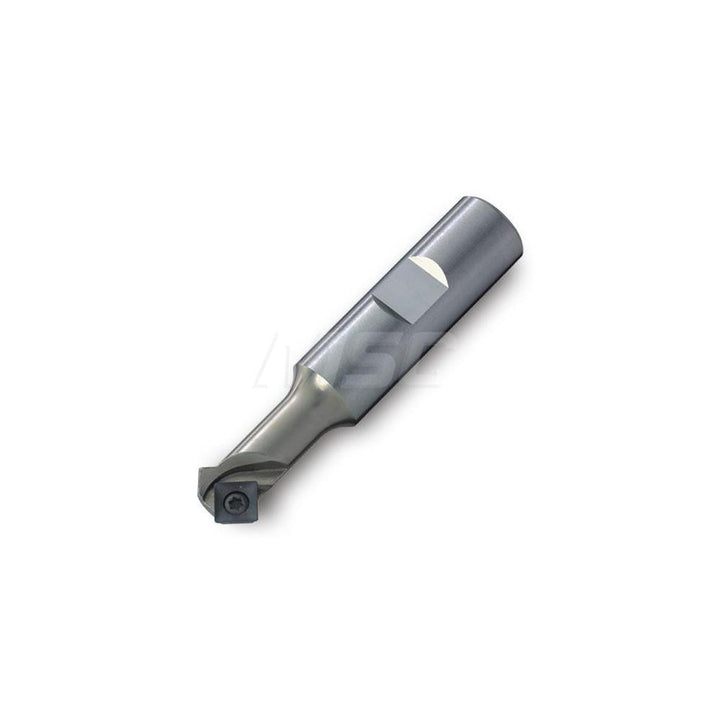

Indexable End Mills - Ingersoll Cutting Tools 3012751
MFR# 3012751Series 15_1E
$232.09
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Ingersoll Cutting Tools 3012751 indexable end mills. Series 15_1E.
Specifications
Coolant throughNo
Functional length1.5000
Head length1.5000
Insert holding methodScrew
Insert styleSDCT 080305FN-P; SDMT 080305N; SDMT 080308N; SDMT 080316N; SDMW 080305TN; SDMW 080308TN; SDMW 080316TN
Maximum body diameter0.7500
Maximum cutting diameter0.6920
Maximum depth of cut0.2200
Minimum cutting diameter in1/4
Number of cutter inserts1
Number of flutes1
Overall length3.5000
Shank diameter in3/4
Shank typeWeldon Flat
Toolholder style15N1; 15P1
Tool applicationMilling
