Ingersoll Cutting Tools

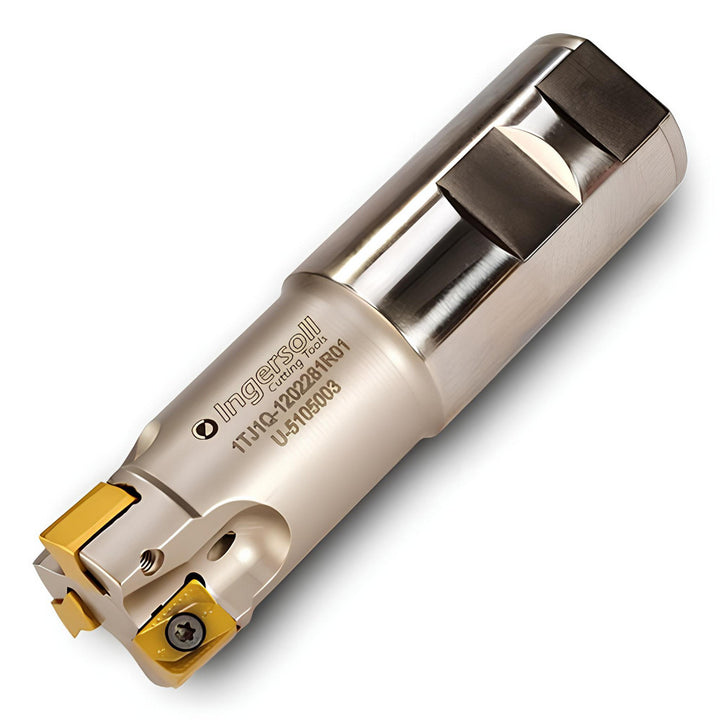

Indexable End Mills - Ingersoll Cutting Tools 3031339
MFR# 3031339Cat# 1TJ1Q-1001780R01Series 1TJ1Q
$382.45
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Ingersoll Cutting Tools 3031339 indexable end mills. Suited for universal. Series 1TJ1Q.
Specifications
Complete insert compatibilityANxU1206..
Coolant throughYes
Cutter style1TJ1Q
Flute typeHelical
Hand of holderRight Hand
Head length1.55
Insert compatibilityANxU1206..
Insert holding methodScrew
Lead angle90
Manufacturers catalog number1TJ1Q-1001780R01
Maximum depth of cut0.4300
Maximum ramping angle1.4
Multi use toolYes
Number of cutter inserts2
Number of flutes2
Overall length in4
Primary workpiece materialUniversal
RakeNegative
Shank diameter in1
Shank length2.4500
Shank typeWeldon Flat
Tool applicationFacing; Shouldering; Ramping
Tool materialSteel
Tool performanceGeneral Purpose
Usable length1.5500
