Ingersoll Cutting Tools
Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4208146
MFR# 4208146Series TPA
$171.85List $213.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description

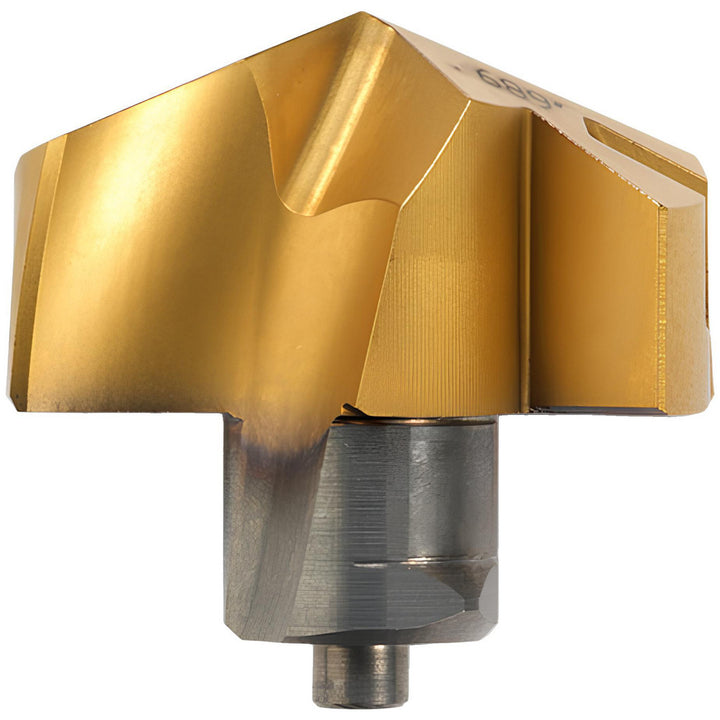

The Ingersoll Cutting Tools 4208146 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1-1/64
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4150
Height0.571
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size25
Iso numberTPA2580R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.5710
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI
StyleTPA
Tip materialSolid Carbide
