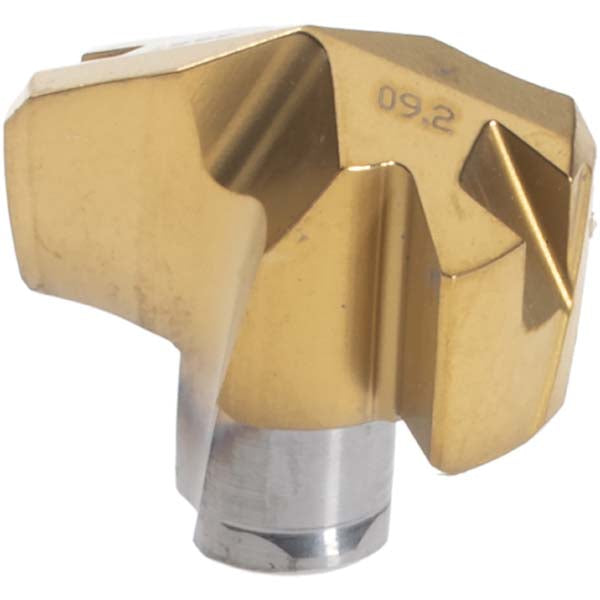

TKA0920R01 IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4209861

Ingersoll Cutting Tools

TKA0920R01 IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4209861

MFR# 4209861ISO/ANSI# TKA0920R01 IN2505Series TKA

$88.68List $108.00 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 2 — minimum order 2

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 4209861 is a TKA0920R01 IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeTKA0920R01 IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityTC; TD
Cutting edge styleHoned
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeIrregular
Insert size09
Insert size code0920
Insert styleTKA
Iso codeTKA0920R01 IN2505
Manufacturers catalog number4209861
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolNo
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
StandardsANSI; ISO
Width0.3622
