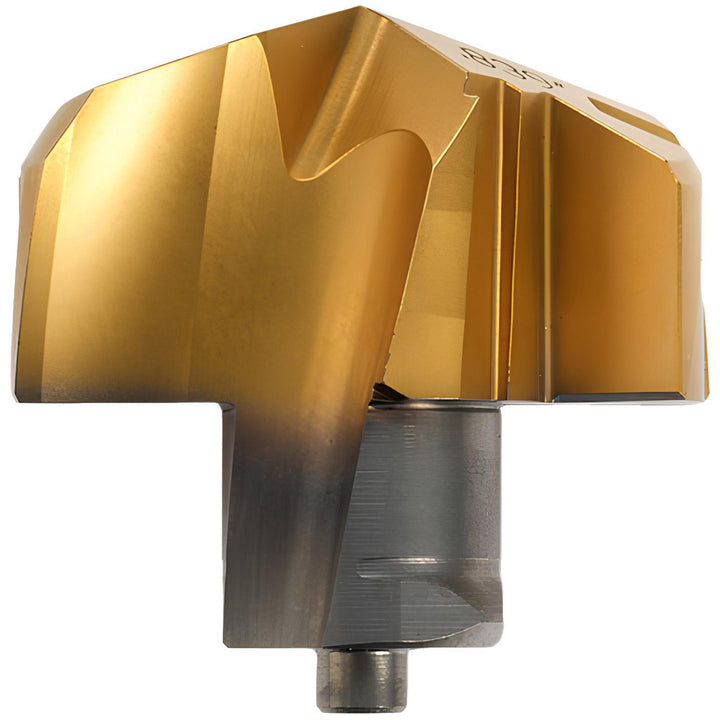

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4209896
MFR# 4209896Series TKA
$101.82List $124.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 4209896 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1/2
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1560
Height0.276
Included angle degree140
Insert geometryK
Insert holding methodClamp
Insert seat size12.5
Iso numberTKA1270R01 IN2505
Manufacturer gradeIN2505
Material gradeSubmicron
Number of flutes2
Overall length projection0.2760
Point typeStandard
Primary workpiece materialCast Iron
Spiral typeRegular Spiral
StandardsANSI
StyleTKA
Tip materialSolid Carbide
