Ingersoll Cutting Tools

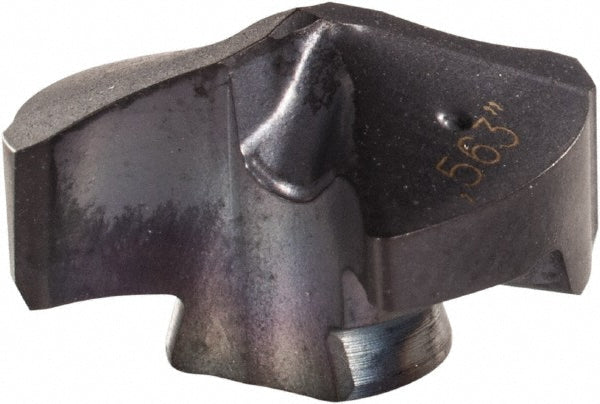

Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5100139
MFR# 5100139Series YAB
$110.85List $135.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 2 — minimum order 2
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2005
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5100139 is a carbide indexable insert, grade IN2005, TiAlN coated. Suited for universal.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter (mm)14.30
Drill point angle140
Functional length0.1650
Height0.268000
Included angle degree140
Insert holding methodTwist
Insert seat size14
Iso numberYAB1430R01
Manufacturer gradeIN2005
Material gradeMicro Grain
Number of flutes2
Overall length projection (mm)0.27
Point angle140
Primary workpiece materialUniversal
Tip materialSolid Carbide
