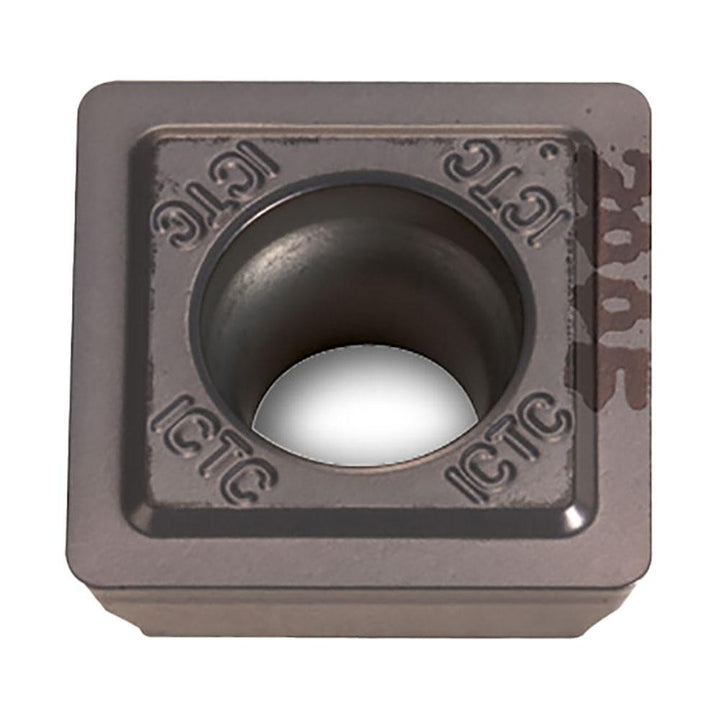

SHLT110408N-FS Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101001

Ingersoll Cutting Tools

SHLT110408N-FS Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101001

MFR# 5101001ISO/ANSI# SHLT110408N-FSSeries SHLT-N-FS

$20.98List $25.95 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5101001 is a SHLT110408N-FS carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSHLT110408N-FS
ChipbreakerFS
Coating finishTiCN
Coating processPVD
Compatible drill style15C; 15S; DHU
Corner radius0.0300
Included angle degree90
Inscribed circle0.4350
Insert materialCarbide
Insert size110408
Insert size code11
Insert styleSHLT
Iso codeSHLT110408N-FS
Length0.4530in
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
ShapeSquare
Thickness0.1810in
Width0.4350in
