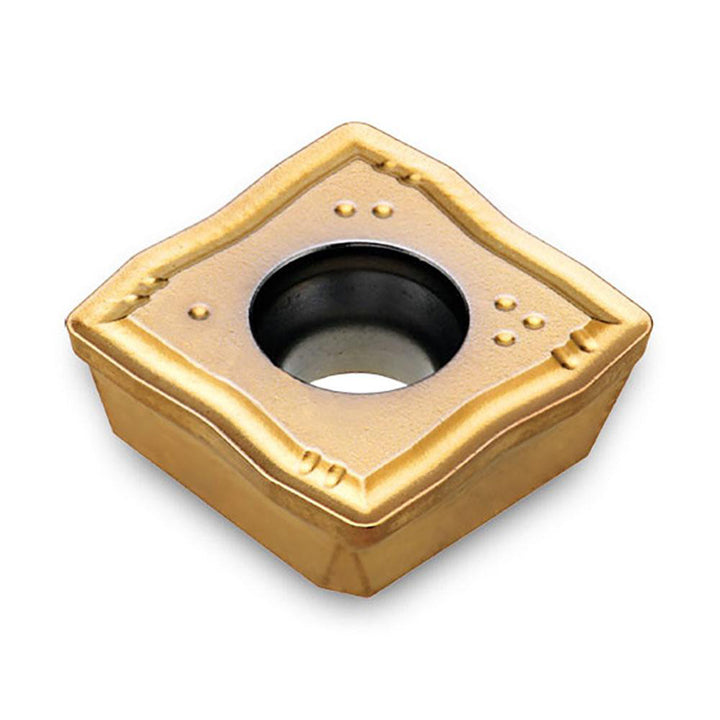

SOMT070306SK Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5101177
MFR# 5101177ISO/ANSI# SOMT070306SKSeries SOMT-SK
$17.24List $21.70
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN2505
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5101177 is a SOMT070306SK carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeSOMT070306SK
ChipbreakerSK
Coating finishTiAlN
Coating processPVD
Compatible drill styleQR
Corner radius0.0240
Included angle degree90
Inscribed circle0.2680
Insert materialCarbide
Insert size070306
Insert size code07
Insert styleSOMT
Iso codeSOMT070306SK
Length0.268
Manufacturer gradeIN2505
Material gradeMicrograin
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
ShapeSquare
Thickness0.114
Width0.268
