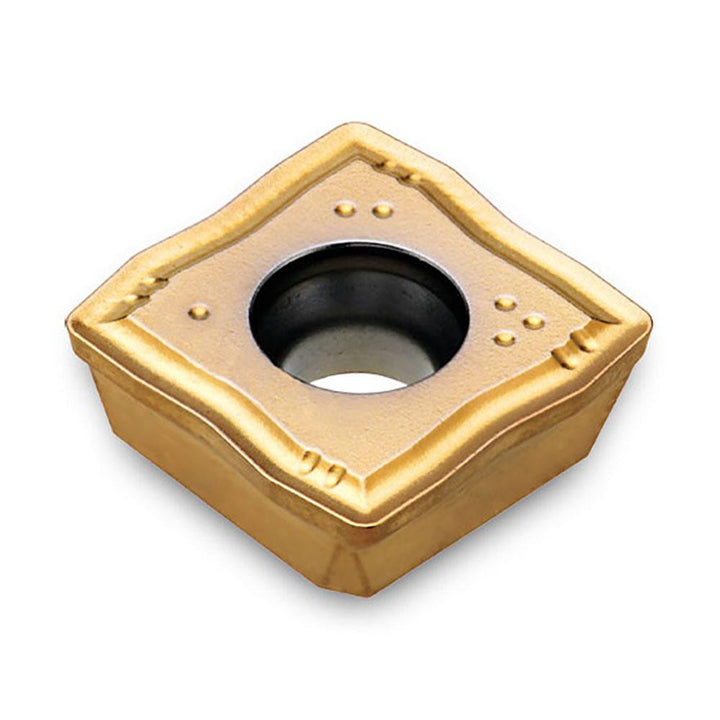

SOMT060204SK IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101219

Ingersoll Cutting Tools

SOMT060204SK IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101219

MFR# 5101219ISO/ANSI# SOMT060204SK IN1030Series SOMT

$17.55List $21.70 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5101219 is a SOMT060204SK IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSOMT060204SK IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityQR
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.2240
Inscribed circle range0.2000 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleSOMT
Iso codeSOMT060204SK IN1030
Length0.2240
Length range0.0000 to 0.3200
Manufacturers catalog number5101219
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1000
Thickness range0.1000 to 0.1250
Width0.2240
