Ingersoll Cutting Tools

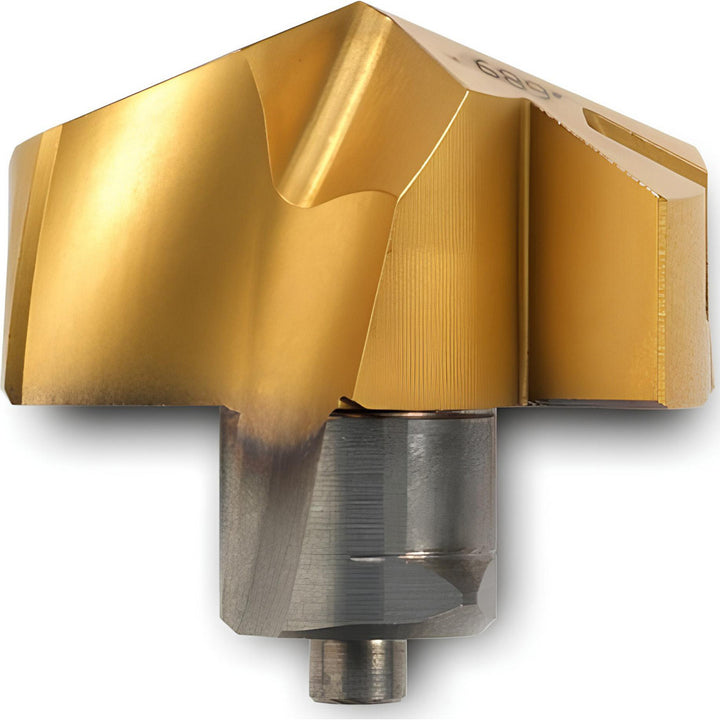

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5101271
MFR# 5101271Series TPA
$160.93List $196.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5101271 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.9055
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.3890
Height0.525
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size23
Iso numberTPA2300R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.5250
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI
StyleTPA
Tip materialSolid Carbide
