SOMT070306SK IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101291

MFR# 5101291ISO/ANSI# SOMT070306SK IN1030Series SOMT

$17.24List $21.70 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

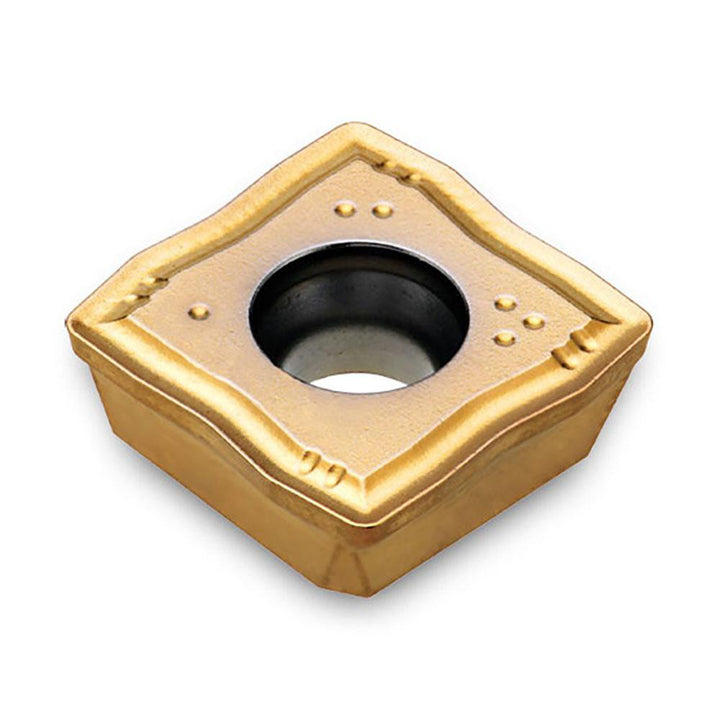

The Ingersoll Cutting Tools 5101291 is a SOMT070306SK IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSOMT070306SK IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius0.0240
Cutter series compatibilityQR
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2000 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code070306
Insert styleSOMT
Iso codeSOMT070306SK IN1030
Length0.2680
Length range0.0000 to 0.3200
Manufacturers catalog number5101291
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1140
Thickness range0.1000 to 0.1250
Width0.2680
