Ingersoll Cutting Tools

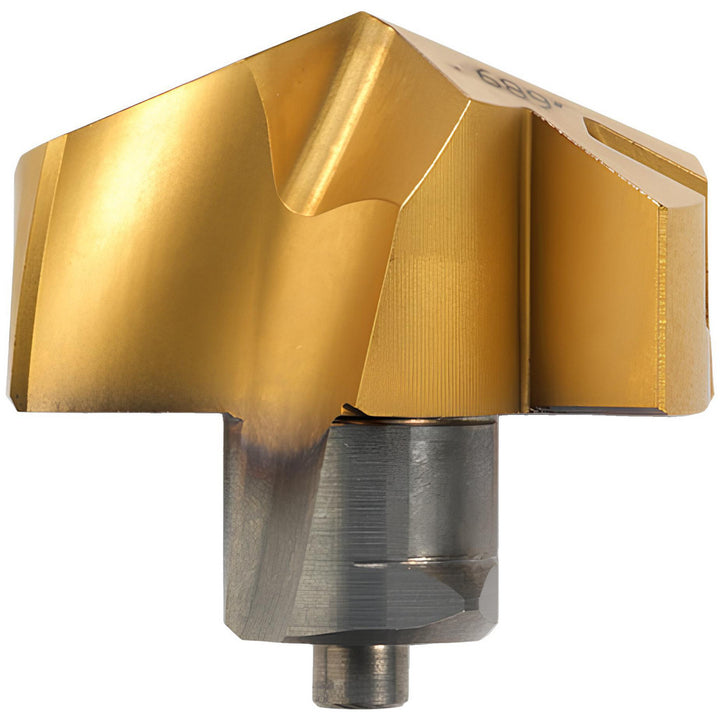

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120010
MFR# 5120010Series TPA
$96.82List $120.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120010 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)11.00
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1940
Height (mm)7.00
Included angle degree140
Insert holding methodClamp
Insert seat size11
Iso numberTPA1100R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.2600
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI
StyleTPA
Tip materialSolid Carbide
