Ingersoll Cutting Tools

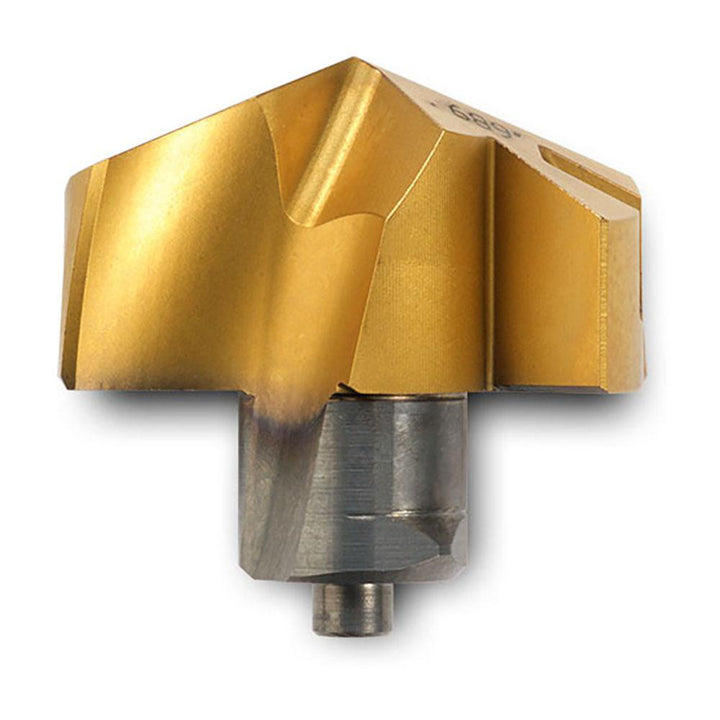

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120019
MFR# 5120019Series TPA
$96.82List $120.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120019 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in15/32
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1880
Height0.26
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size11.5
Iso numberTPA1190R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.2600
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI
StyleTPA
Tip materialSolid Carbide
