Ingersoll Cutting Tools

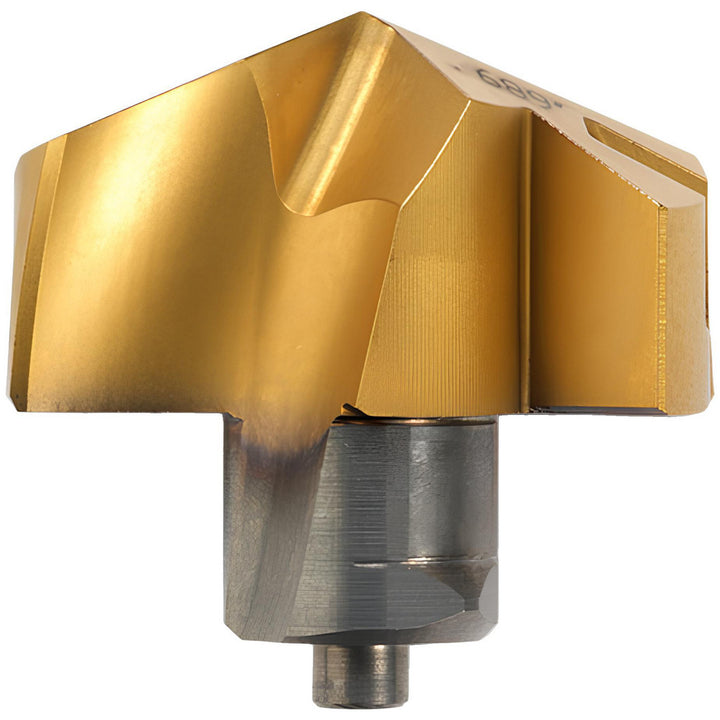

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120055
MFR# 5120055Series TPA
$107.30List $133.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120055 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)15.00
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2510
Height in11/32
Included angle degree140
Insert holding methodClamp
Insert seat size15
Iso numberTPA1550R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.3440
Point typeStandard
Primary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI
StyleTPA
Tip materialSolid Carbide
