Ingersoll Cutting Tools

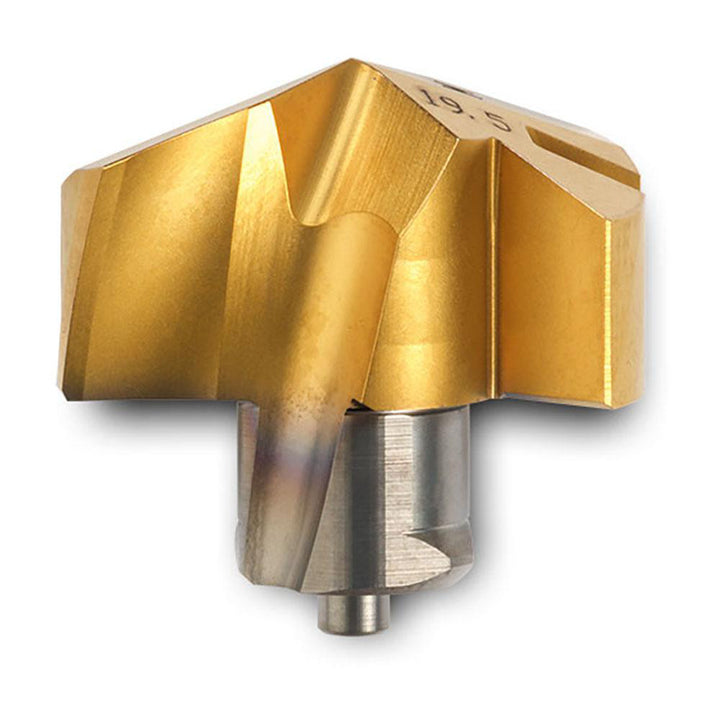

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120124
MFR# 5120124Series TMA
$102.47List $127.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120124 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for stainless steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in31/64
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.2020
Height0.276
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size12
Iso numberTMA1230R01 IN2505
Manufacturer gradeIN2505
Material gradeM15; M35
Number of flutes2
Overall length projection0.2760
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StandardsANSI
StyleTMA
Tip materialSolid Carbide
