Ingersoll Cutting Tools

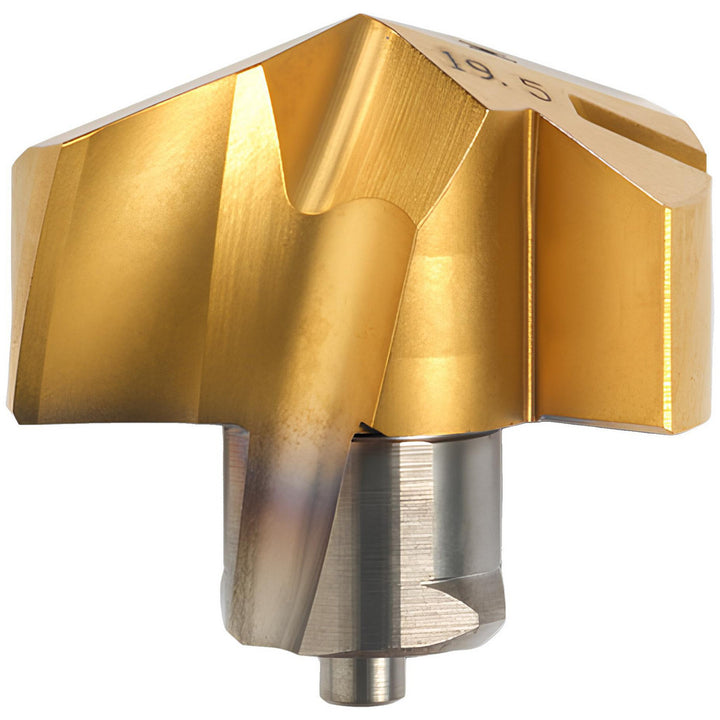

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120151
MFR# 5120151Series TMA
$110.85List $135.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120151 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for stainless steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.5906
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2540
Height in11/32
Included angle degree140
Insert holding methodClamp
Insert seat size15
Iso numberTMA1500R01 IN2505
Manufacturer gradeIN2505
Material gradeM15; M35
Number of flutes2
Overall length projection0.3440
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StandardsANSI
StyleTMA
Tip materialSolid Carbide
