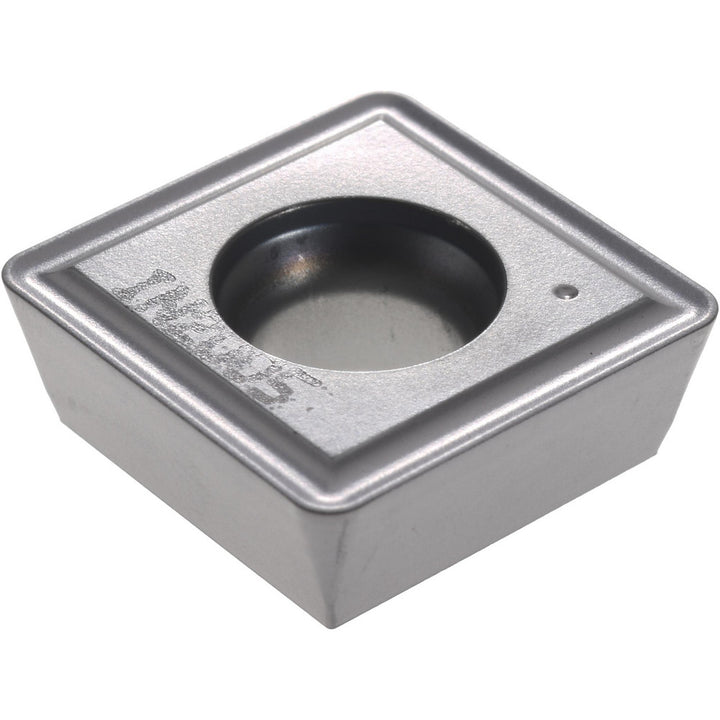

SPLT140512N-PH Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5140222

Ingersoll Cutting Tools

SPLT140512N-PH Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5140222

MFR# 5140222ISO/ANSI# SPLT140512N-PHSeries SPLT-N-PH

$23.31List $29.35 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2005
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5140222 is a SPLT140512N-PH carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, cast iron, stainless steel, superalloys & titanium, hard material.

Specifications

Ansi codeSPLT140512N-PH
ChipbreakerPH
Coating finishTiAlN
Coating processPVD
Compatible drill styleQ
Corner radius0.0470
Included angle degree90
Inscribed circle0.5630
Insert materialCarbide
Insert size140512
Insert size code14
Insert styleSPLT
Iso codeSPLT140512N-PH
Length0.563
Manufacturer gradeIN2005
Material gradeC2
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
ShapeSquare
Thickness0.212
Width0.563
