Ingersoll Cutting Tools

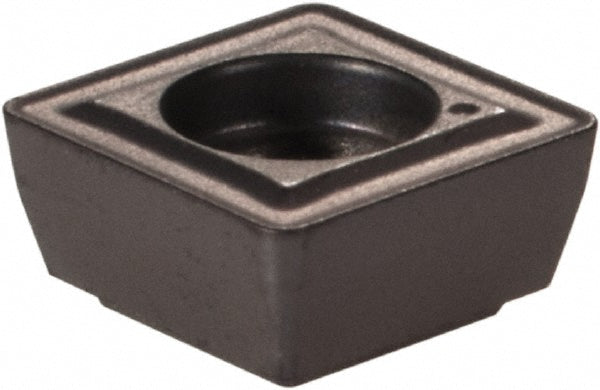

0.2000" IC Solid Carbide Insert, Grade IN2005, Coated - Ingersoll Cutting Tools 5140234
MFR# 5140234Series SCLT-N-PH
$16.57List $20.50
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN2005
MaterialSolid Carbide
CoatingCoated
Description
The Ingersoll Cutting Tools 5140234 is a solid carbide indexable insert, grade IN2005, Coated coated. Suited for universal.
Specifications
ChipbreakerPH
Coating finishCoated
Coating processPVD
Corner radius0.0150
Cutting directionNeutral
Included angle degree90
Inscribed circle0.2000
Insert materialSolid Carbide
Insert size050204
Insert size code05
Insert styleSCLT
Length0.2000
Manufacturer gradeIN2005
Material gradeC2
Number of cutting edges4
Primary workpiece materialUniversal
ShapeSquare
Thickness0.0930
Width0.2000
