Ingersoll Cutting Tools

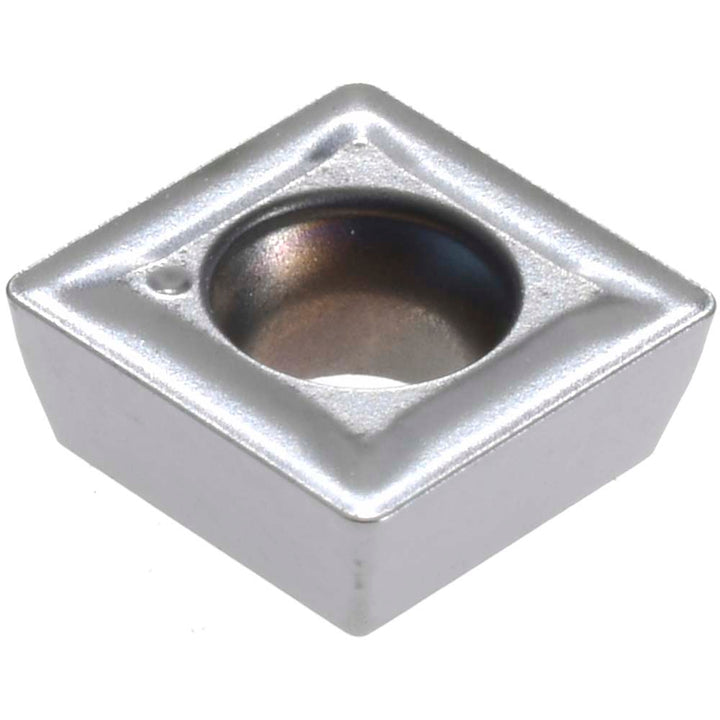

0.2360" IC Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151055
MFR# 5151055Series SHLT-N-PH
$17.55List $21.70
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5151055 is a carbide indexable insert, grade IN1030, TiCN coated. Suited for universal.
Specifications
ChipbreakerPH
Coating finishTiCN
Coating processPVD
Corner radius0.0160
Included angle degree90
Inscribed circle0.2360
Insert handNeutral
Insert materialCarbide
Insert size060204
Insert size code06
Insert styleSHLT
Length0.236
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialUniversal
ShapeSquare
Thickness0.0980
Width0.236
