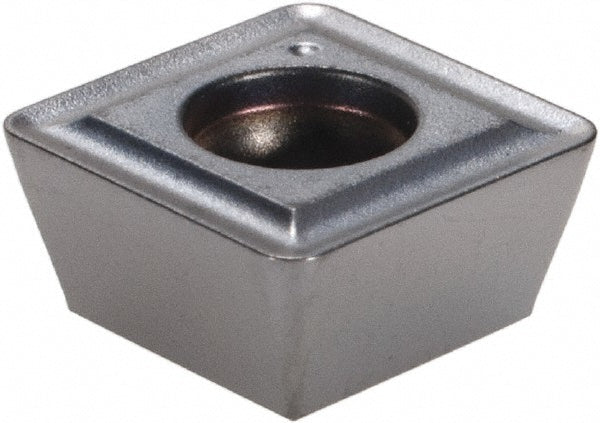

SPLT07T308N-PH Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151056

Ingersoll Cutting Tools

SPLT07T308N-PH Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151056

MFR# 5151056ISO/ANSI# SPLT07T308N-PHSeries SPLT-N-PH

$17.55List $21.70 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5151056 is a SPLT07T308N-PH carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeSPLT07T308N-PH
ChipbreakerPH
Coating finishTiCN
Coating processPVD
Compatible drill styleQ
Corner radius0.0300
Cutting directionNeutral
Included angle degree90
Inscribed circle0.3130
Insert materialCarbide
Insert size07T308
Insert size code07
Insert styleSPLT
Iso codeSPLT07T308N-PH
Length0.3130
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super-Alloys & Titanium
RakePositive
ShapeSquare
Thickness0.1600
Width0.3130
