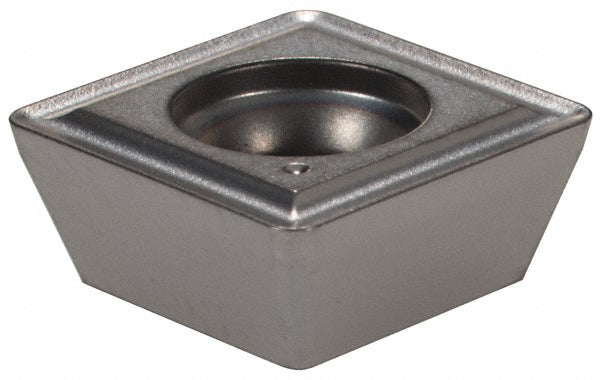

SHLT090408N-PH1 Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151057

Ingersoll Cutting Tools

SHLT090408N-PH1 Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151057

MFR# 5151057ISO/ANSI# SHLT090408N-PH1Series SHLT-N-PH1

$19.12List $23.65 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5151057 is a SHLT090408N-PH1 carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeSHLT090408N-PH1
ChipbreakerPH1
Coating finishTiCN
Coating processPVD
Compatible drill styleQ
Corner radius0.0300
Cutting directionNeutral
Included angle degree90
Inscribed circle0.3860
Insert materialCarbide
Insert size090408
Insert size code09
Insert styleSHLT
Iso codeSHLT090408N-PH1
Length0.3860
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super-Alloys & Titanium
RakePositive
ShapeSquare
Thickness0.1750
Width0.3860
