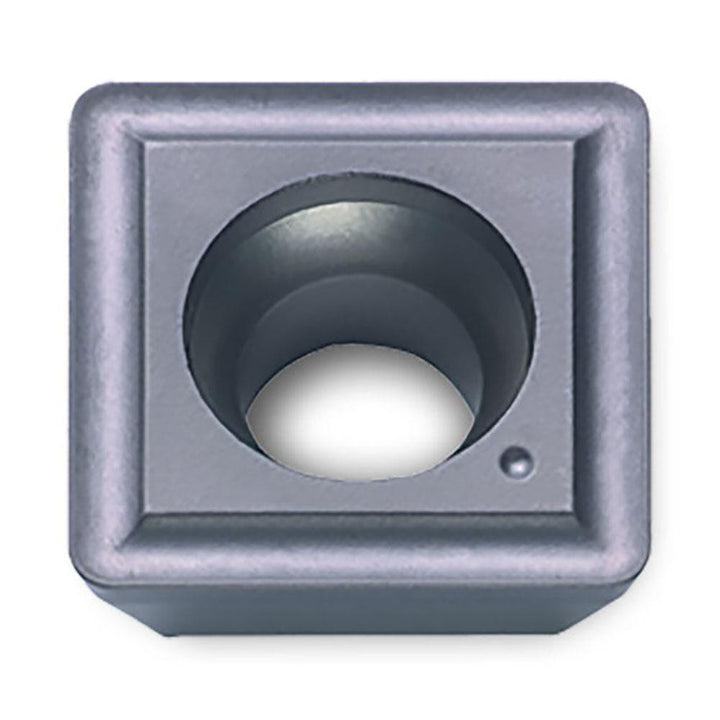

SHLT110408N-PH1 IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5151058

MFR# 5151058ISO/ANSI# SHLT110408N-PH1 IN1030Series SHLT

$20.77List $26.15 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5151058 is a SHLT110408N-PH1 IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSHLT110408N-PH1 IN1030
Chip breakerPH1
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityQ; QA; QF
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110408
Insert styleSHLT
Iso codeSHLT110408N-PH1 IN1030
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog number5151058
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1960
Thickness range0.1850 to 0.2000
Width in29/64
