Ingersoll Cutting Tools

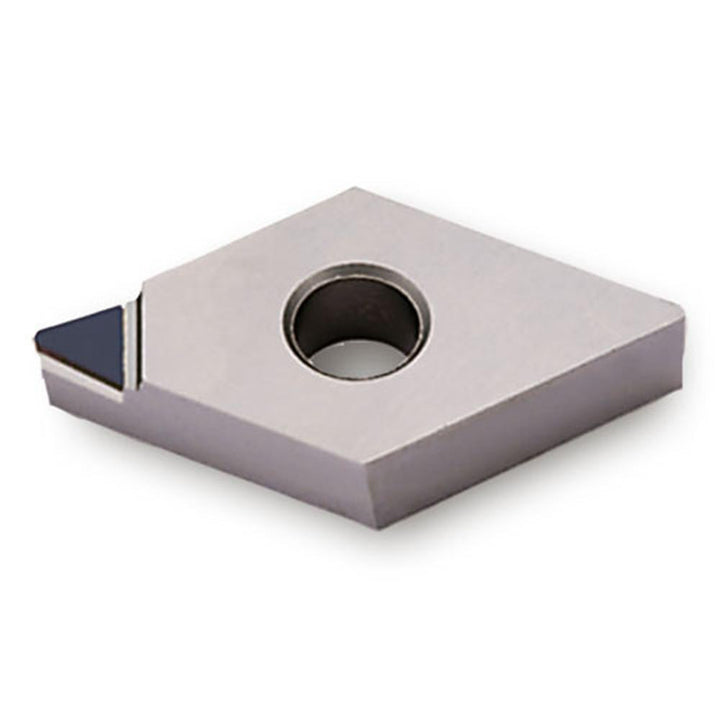

DNGA150404LN-10 KP300 PCD Insert, Grade KP300 - Ingersoll Cutting Tools 5400955
MFR# 5400955ISO/ANSI# DNGA150404Series DNGA
$140.82List $147.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKP300
MaterialPCD
Description
The Ingersoll Cutting Tools 5400955 is a DNGA150404LN-10 KP300 pcd indexable insert, grade KP300. Suited for non-ferrous metal.
Specifications
Ansi insert codeDNGA431
Ansi size code431
Chip breaker10
Clearance codeN
Coating processUncoated
Corner radius0.0160
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.6100
Insert materialPCD
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNGA
Insert thickness0.1870
Iso codeDNGA150404LN-10 KP300
Iso insert codeDNGA150404
Iso size code150404
Manufacturer gradeKP300
Maximum depth of cut0.1570
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeG
Width in1
Wiper edgeNo
