Ingersoll Cutting Tools

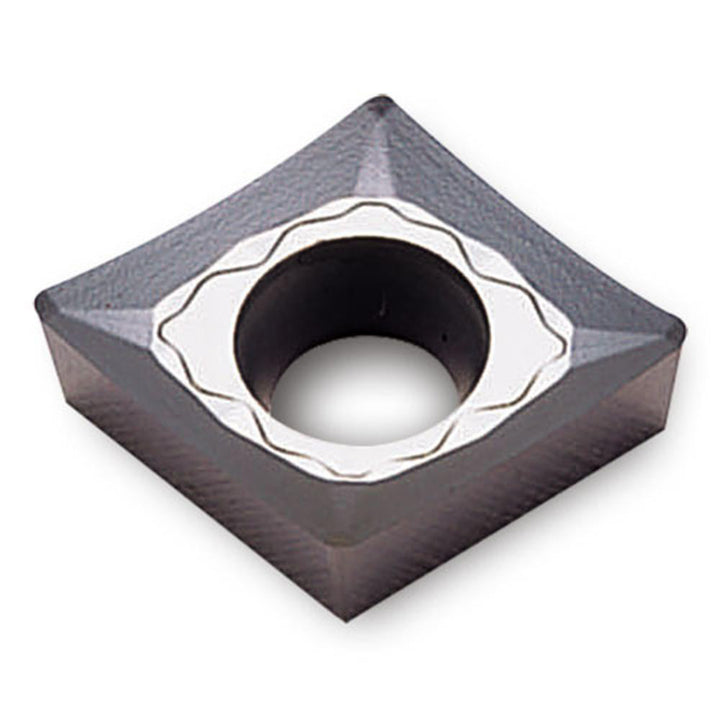

CCGT09T308FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5512920
MFR# 5512920ISO/ANSI# CCGT09T308FL K10Series CCGT
$19.32List $24.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeK10
MaterialCarbide
Description
The Ingersoll Cutting Tools 5512920 is a CCGT09T308FL K10 carbide indexable insert, grade K10. Suited for cast iron, non-ferrous metal, superalloy, titanium.
Specifications
Chip breakerFL
Clearance codeC
Coating processUncoated
Corner radius0.0310
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGT
Insert thickness0.1560
Iso codeCCGT09T308FL K10
Manufacturer gradeK10
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloy; Titanium
RakePositive
Relief angle7
StandardsISO
Tolerance codeG
Wiper edgeNo
