Ingersoll Cutting Tools

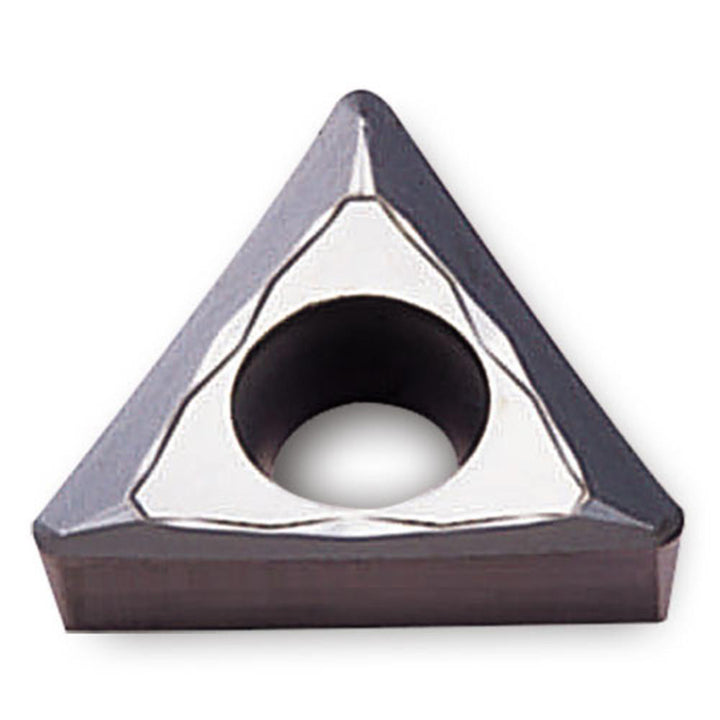

TCGT16T308FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5512986
MFR# 5512986ISO/ANSI# TCGT16T308Series TCGT
$21.29List $27.30
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeK10
MaterialCarbide
Description
The Ingersoll Cutting Tools 5512986 is a TCGT16T308FL K10 carbide indexable insert, grade K10. Suited for cast iron, superalloy, titanium, non-ferrous metal.
Specifications
Ansi insert codeTCGT32.52
Ansi size code32.52
Chip breakerFL
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius0.0310
Grade characteristicsCast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1730
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTCGT
Insert thickness0.1560
Iso codeTCGT16T308FL K10
Iso insert codeTCGT16T308
Iso size code16T308
Manufacturer gradeK10
Maximum depth of cut0.4625
Number of cutting edges3
Primary workpiece materialCast Iron; Superalloy; Titanium; Non-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
Width0.6500
Wiper edgeNo
