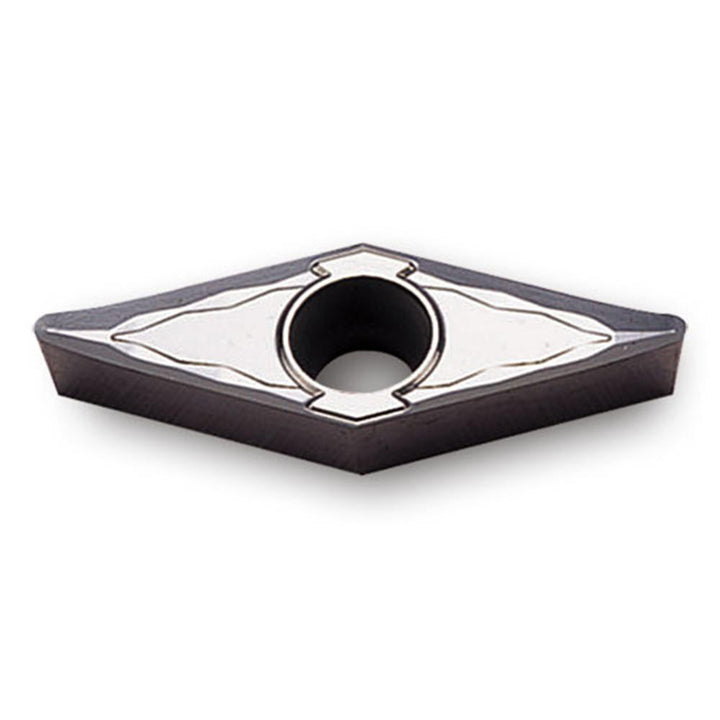

VCGT110304FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5513052
MFR# 5513052ISO/ANSI# VCGT110304FL K10Series VCGT
$24.05List $30.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeK10
MaterialCarbide
Description
The Ingersoll Cutting Tools 5513052 is a VCGT110304FL K10 carbide indexable insert, grade K10. Suited for cast iron, superalloy, titanium, non-ferrous metal.
Specifications
Chip breakerFL
Clearance codeC
Coating processUncoated
Corner radius0.0160
Hole diameter0.1100
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110304FL K10
Manufacturer gradeK10
Number of cutting edges2
Primary workpiece materialCast Iron; Superalloy; Titanium; Non-Ferrous Metal
RakePositive
Relief angle7
Tolerance codeG
Wiper edgeNo
