Ingersoll Cutting Tools

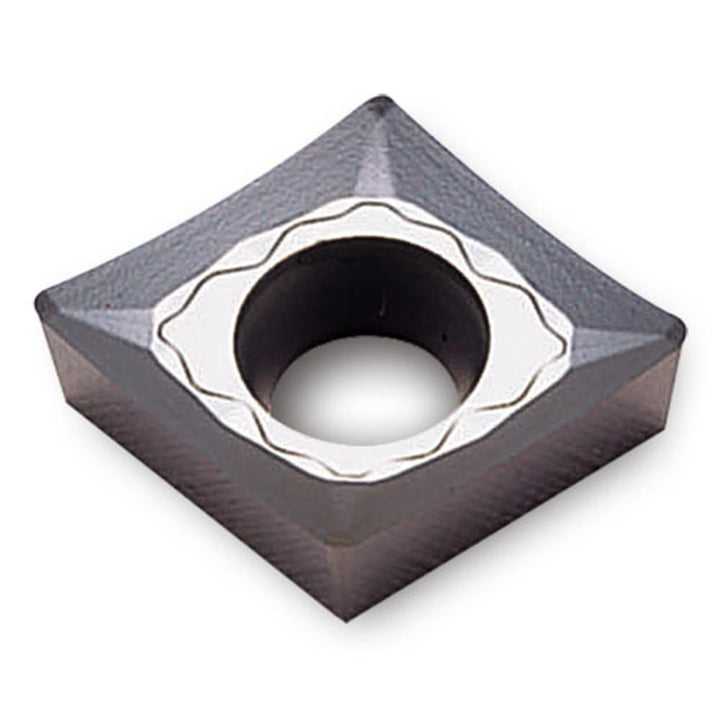

CCGT060202FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5513934
MFR# 5513934ISO/ANSI# CCGT060202Series CCGT
$17.89List $22.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeK10
MaterialCarbide
Description
The Ingersoll Cutting Tools 5513934 is a CCGT060202FL K10 carbide indexable insert, grade K10. Suited for cast iron, superalloy, titanium, non-ferrous metal.
Specifications
Ansi insert codeCCGT21.50.5
Ansi size code21.50.5
Chip breakerFL
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius0.0080
Grade characteristicsCast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50.5
Insert styleCCGT
Insert thickness0.0940
Iso codeCCGT060202FL K10
Iso insert codeCCGT060202
Iso size code060202
Manufacturer gradeK10
Maximum depth of cut0.1290
Number of cutting edges2
Primary workpiece materialCast Iron; Superalloy; Titanium; Non-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
Width in1/4
Wiper edgeNo
