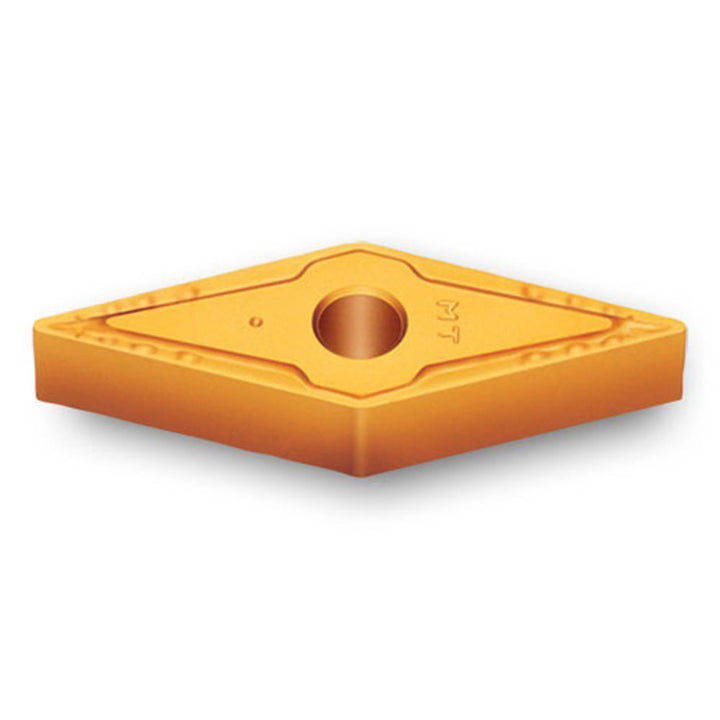

VNMG160404MT TT5100 Carbide Insert, Grade TT5100, Al2O3 - Ingersoll Cutting Tools 5515088
MFR# 5515088ISO/ANSI# VNMG160404Series VNMG
$25.20List $31.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTT5100
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5515088 is a VNMG160404MT TT5100 carbide indexable insert, grade TT5100, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerMT
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160404MT TT5100
Iso insert codeVNMG160404
Iso size code160404
Manufacturer gradeTT5100
Maximum depth of cut0.0980
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/8
Wiper edgeNo
